Vekselstrømsenheter

Alt man forventer i et stort hjem kan også finnes i et luksushjem. Alle disse enhetene trenger vekselstrøm for å kunne betjenes. Tenk på:

• Underholdningssuite
• TV(er)
• Kontor med datamaskiner osv.
• Telefonladere
• Kjøleskap og fryser
• Kaffemaskin
• Brødbakemaskin
• Oppvaskmaskin
• Mikrobølgeovn
• Kjøkkenmikser
• Vinkjøler
• Vaskemaskin
• Tørketrommel

BatteryProtect

Utlading av et batteri for langt vil skade batteriet. Å legge til en Victron BatteryProtect vil koble batteriet fra i tilfelle spenningen faller under et forhåndsinnstilt nivå. Ingen skade ble gjort.

There is more to a Victron BatteryProtect. Built-in shutdown delays ensure vital electronics aren’t disconnected in error, i.e. when starting an engine causes a short drop in voltage. It will also automatically reconnect everything when the battery is sufficiently recharged.

BatteryCombiner

The Cyrix BatteryCombiner is the only safe way to connect the house battery to the starter battery (to start your boat’s engines). With a BatteryCombiner you can charge the house battery from the alternator without running the risk of draining the starter battery (which always should be ready to go). When other sources of power are available (eg. shore/solar/generator power), the Cyrix BatteryCombiner will allow bi-directional charging from the house battery to the starter battery.

Hvis spenningene til start- og husbatteriene er de samme, må det brukes en Cyrix: gjeldende klassifisering bør være lik eller større enn gjeldende vurdering av dynamoen. I tilfelle husets batteri er litium og dynamoens strømstyrke er mindre enn husets batteri, eller i tilfelle spenningene til start- og husbatteriet er forskjellige: bruk en likestrøm-likestrømsomformer eller Buck-Boost.

Battery Management Systems

Battery management systems take excellent care of Lithium batteries, protecting the individual cells of LiFePO4 batteries against over voltage, under voltage and over temperature and will shut down or reduce charging (VE.Bus products only) or disconnect the loads when this occurs.

Victron Energy offers several BMS options, in general the VE.Bus BMS and smallBMS signal separate devices to disconnect the charging (Inverter/Chargers, Cyrix-Li, DC-DC chargers) or disconnect the loads (BatteryProtect, Inverter/Charger), the modular Lynx distribution system features the Lynx BMS and other modules for more control over the DC busbar. For vehicles and boats all-in-one functionalities are available in the Smart BMS versions for Victron Lithium batteries, but also include current limiting to protect the alternator from overheating and BatteryProtect-like functionality to shut down the loads when pre-set critical battery conditions are met.

Victron Energy also offers full flexibility when it comes to selecting a third-party off-grid battery bank (and their BMS) of choice. A large number of well supported Lithium battery manufacturers can be easily integrated through the use of a mandatory GX-device. This flexibility enables our customers to perfectly match their off-grid needs for their unique power situation. When working with unsupported brands, a Victron Energy Battery Monitor is required to pass on accurate state of charge readings to the wider system.

Se alle våre systemer for batteribehandling

Batterimonitorer

En batterimonitor er som en «drivstoffmåler» for ditt batteri. Den registrerer strømmen som forbrukes og lades. Batterimonitoren beregner ladetilstand, gjenværende kapasitet og tiden til den er tom. Batterispenningen gir ikke en nøyaktig indikasjon på batterinivået (spesielt ikke under belastning). En batterimonitor gjør det.

Victron Energy-batterimonitorer holde oversikt over historiske data, slik som antall ladesykluser, dypeste utladning, høyeste spenning, laveste spenning osv. Den varsler brukeren om kritiske forhold som lav spenning eller lav ladning og kan også slå av hele strømforsyningen med det formål å unngå dyre batteriskader, eller start av en generator.

Victron tilbyr batterimonitorer med eller uten skjerm. Smart-versjoner kan brukes for å spore detaljerte data og justere innstillinger i vår gratis VictronConnect-app.

De fleste litiumsystemer krever et system for batteribehandling, som kan sende batteriinformasjon til det bredere systemet. Batteriskjermen kan dermed være overflødig. Se System for batteribehandling for mer informasjon. Se alle våre batterimonitorer

Boat engines

Large yachts are equipped with marine engines similar to those in commercial vessels. The engines are designed to run continuously, for weeks on end. They come with high-output alternators to charge the engine batteries, drive fuel pumps, etc. They are also intended to power DC equipment like the desalination plant, winches, navigation, refrigeration, etc.

Boat Network

Keeping grips on all the systems on board can be a hassle. The solution: tie everything together in a single boat network using NMEA communication standards. Your boat network can include navigation equipment, tank senders, battery monitoring and much more. The status information can trigger alarms and shutdowns, adding to the safety on board. The Cerbo GX now supports the NMEA2000 out protocol, allowing you to monitor your boat’s network of systems from wherever you are.

Cerbo GX

The Victron Cerbo GX is the communication-centre of your boat’s installation, allowing you to always have perfect control from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the optional GX Touch 50 screen, a Multi Functional Display or our VictronConnect app thanks to its added Bluetooth capability.

The Victron Cerbo GX is an easy to use visual system. Instantly monitor the battery state of charge, power consumption, power harvest from PV, generator, and mains, or check tank levels and temperature measurements. Easily control the shore power input current limit, (auto)start/stop generator(s) or even set quiet periods to avoid starting the generator in the middle of the night. Change any setting to optimise the system, follow up on alerts, perform diagnostic checks and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.

Båtelektronikk

A luxury yacht has a lot of DC equipment on board. Most of these devices are needed to safely operate the ship. The battery should be big enough to support them even when the ship’s engines and generators aren’t running.

• Kontrollpanel for båt
• Logg/ekkolodd
• Kartplotter
• Navigasjon/GPS
• Navtex
• Automatisk pilot
• Radio med alle bånd
• Satellittkommunikasjon
• Systemer for identifisering av sjøtrafikk
• Navigasjonslys
• Pumper
• Blåsere
• Innvendig belysning
• Hifi

Generator

Large yachts are often equipped with two or more generators. The main generator (i.e. 50 kW) covers all the power you’ll need to throw a big party. A quiet, smaller generator (i.e. 8 kW) could be used with less people on board or power the air conditioning at night when it’s hot out there, or the floor’s heating when it’s cold.

Adding batteries and Victron’s PowerAssist creates a smart hybrid power concept. It comes with several advantages:

• Longer generator free periods.
• Reduced rating of the generator.
• Reduces shore power requirement.
• Uninterrupted AC power on board.
• Increase redundancy and therefore safety.

Bigger yachts with large Lithium (house) battery banks can also have dedicated DC-DC generators to directly charge the batteries.

GX GSM Dongle

A GX GSM module will give you 3G internet connectivity to the on board systems. When the boat is in range of a 3G network, it will send data to the VRM website and you can monitor the boat from your smartphone. The GSM module adds tracking the boat, recording your trips and putting up a geo-fence around the boat. You will get an alert via mail when the boat travels outside the geo-fence area.

GX 4G-moduller

En GX 4G-modul vil legge til mobil Internett-tilkobling til ditt Victron Energy-system. Når ditt system finnes innenfor rekkevidden til et 4G-nettverk, vil det sende data til VRM-nettstedet, og man kan overvåke systemet fra smarttelefonen. Modulen legger til GPS-sporing, registrerer dine turer og konfigurerer et geofjerde rundt installasjonen. Du vil få et varsel på e-post i tilfelle systemet finnes utenfor geofjerdet.

Victron Energy tilbyr flere 4G-moduler og GlobalLink 520-modemet, som fungerer uten månedlige avgifter eller abonnementer, de første fem årene. Se våre 4G-modem Se vår GlobalLink 520

House battery

The house battery stores power for the boat’s electrical system. Large yachts come with large power demands and the house battery should have a very large capacity.

For a house battery you can choose from two types: lead-acid and lithium. There are various reasons to favour one over the other. Here are a few common ones:

Choose Lead-Acid when: Use occasionally Lower purchase cost Weight and space are not an issue Normal charging

Choose Lithium when: Use daily Lower cost per cycle Weight and space considerations Fast charging

House battery

The house battery stores power for the boat’s electrical system. Large yachts come with large power demands and the house battery should have a very large capacity.

For a house battery you can choose from two types: lead-acid and lithium. There are various reasons to favour one over the other. Here are a few common ones:

Choose Lead-Acid when: Use occasionally Lower purchase cost Weight and space are not an issue Normal charging

Choose Lithium when: Use daily Lower cost per cycle Weight and space considerations Fast charging

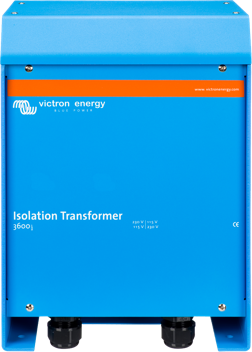

Isolation Transformer

An isolation transformer prevents electrolytic corrosion. The transformer is mounted directly behind the shore power connector on board. It blocks DC currents that might leak through the shore power earth terminal. These currents can cause corrosion to all metal parts under water, like the hull, propeller, shaft, etc. The isolation transformer should have the same power rating as the incoming shore power.

It’s a misunderstanding that galvanic corrosion occurs only in metal and aluminium hulls. In fact it can occur on any boat as soon as a metallic part (the shaft and propeller) is in contact with water. Galvanic corrosion will quickly dissolve your sacrificial anodes, and attack the shaft, propeller and other metal parts in contact with water as soon as the boat is connected to the shore-side supply. It might therefore be tempting not to connect the ground conductor: this is however extremely dangerous because Ground Fault Current Interrupters will not work nor will a fuse blow in case of a short circuit to a metal part on the boat.

The safe option is to use an isolation transformer for metal boats or boats with bigger systems, sized in line with how much Watts the boat will consume from shore power.

Inverter/Charger

A large yacht will take a three phase shore power supply. The large generator on board will also deliver three phases; it will run most of the day. A smaller second generator (in hybrid combination with the batteries) could be used with less people on board. a super silent version could power the air conditioning at night when it’s hot out there, or the floor’s heating when it’s cold. Without airconditioning, the inverter/charger can supply power from batteries during the night and act as a backup for the generator(s).

• Victron inverter/chargers come with a handful of outstanding features:
• PowerControl: automatically manage battery charging to prevent an overload of the generator or shore power.
• PowerAssist: uses the batteries as a buffer to assist the generators or shore power during peak power demand.
• Perfect power: even sensitive devices run flawlessly and uninterrupted on the pure sine wave power.
• High peak-power: use heavy motorised equipment without overheating.
• Optimize the use of a larger main generator and a smaller secondary generator.
• Use the power stored in batteries to create a quiet generator free period.
• Increase redundancy and safety.
• Low self consumption.
• Multiple Quattros can be joined to create a three phase supply upwards of 60kW (Victron can even size up to 180kVa, but that’s way too much for a Yacht).

Thanks to Victron’s PowerAssist, the generator doesn’t have to be sized for the maximum load. You can use a smaller generator which is cheaper to install, uses less fuel and produces less noise. Also, peak demand can be met by combining the generator with Victron Quattro inverter/chargers.

A three phase inverter/charger system always consists of three interconnected inverter/chargers. Throughout the boat you’ll find three phase and single phase loads. The three phases are split into several single and three phase groups. Each group powers a number of devices. There is a switchboard in the boat, like you’ll find in your home.

Lynx ion BMS

The Lynx Ion BMS is a dedicated battery management system (BMS) that protects lithium batteries against deep discharges, overcharging and high temperatures. When critical values are exceeded, the BMS acts immediately: loads are disconnected physically in case of a deep discharge and charging is stopped when there is a risk of overcharging. High temperatures trigger an immediate end to both charging and discharging.

The Lynx Ion BMS is tailored for the 24 or 48 Volt HE lithium batteries. It comes in two ratings of 400 and 1,000 Amps to fit even the biggest systems. Loads and charging power are disconnected automatically in case of deep discharges, overcharges and high temperatures. Battery monitoring is built into the The Lynx Ion BMS; no separate battery monitor is needed.

MFD GX-integrasjon

The Victron integration between our GX range and several leading Multi Functional Display manufacturer brands enables you to easily connect an MDF to the heart of your power system such as the Cerbo GX, or the GX enabled Multiplus-II GX. Once connected you can easily monitor and control your boat’s power system, right on your Glass Bridge.

3 Phase Loads

Everything is bigger on large luxury yachts. DC or single phase AC often isn’t enough to run the powerful thrusters, winches, pumps and pressure-washers. They need three phase AC to quench their thirst for power.

Professional kitchens and catering equipment come with appliances that take three phase AC. The boat might also have a three phase electrical boiler to provide hot water to several bathrooms and taps at the same time.

Examples of three phase equipment:

• Heavy windlass
• Heavy pumps
• Hydrophore
• Deck winches
• Bow thruster
• Stern thruster
• Boiler
• Professional kitchen equipment
• Desalination plant
• Air conditioning

Orion-TR Smart DC/DC charger

The Orion-Tr Smart DC/DC charger is used in dual battery systems, where the (smart) alternator and the start battery are used to charge the service battery (of equal or different voltages). The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries and can be parallel connected to increase the output current.

Charging lithium batteries from the alternator

Alternators cannot be connected directly to most lithium batteries. A lithium battery will draw more current than the alternator can supply, which may result in alternator damage. A Orion-Tr Smart DC/DC charger solves this problem: it acts as a current limiter between the alternator and the battery: the battery can be safely charged without blowing up the alternator.

Please check your manufacturer for the maximum charging current of your alternator and size the configuration of DC-DC converters accordingly (the current rating of the DC/DC charger has to be less than the alternator’s current rating, or programmed to deliver less Amps).

Starter Battery

The starter battery is needed to start your boat’s engines. These batteries are different from house batteries and engineered to deal with a large discharge current. The starter batteries should be ready to go. Always use a BatteryCombiner to connect the starter batteries to the rest of the electrical system; it prevents an accidental drain of power.

Solar panels

More and more yachts area equipped with solar panels. Although they will never be able to cater for all the power needed, they can reduce the running time of the generator and fuel costs. Victron offers a wide range of highly efficient solar panels that are just perfect for marine use.

Shore Power

Usually shore power is available in the marina; it is used to run large AC equipment on board and recharge the batteries. Larger boats need a three phase supply. Sometimes shore power can’t provide enough power to cater for the total AC load of the boat. It might also just be single phase.

Often shore power is limited in how much power you can draw, i.e. just 10 Amps. Berths with higher ratings might not always be available. Victron inverter/chargers allow you set a maximum shore power current. Now you can charge your batteries and turn on any equipment without blowing a fuse. Thanks to Victron’s PowerAssist, the generator and batteries can automatically bridge the gap between supply and demand.

Sometimes shore power is less than perfect. You might run into voltage drops if you’re at the far end of the harbour. There could also be power surges, which could harm sensitive equipment on board. Victron’s inverter/chargers smooth out these problems and turn bad power into perfect power.

Solar charger

A solar charger harvests the power from the solar panels to charge the house batteries. Solar chargers have the same charging cycles as a regular, fully automatic, battery charger.

In a marine environment, the performance of solar panels changes constantly. Victron’s solar controllers use ultra fast maximum power point tracking to squeeze every drop of power out of the panels.

GX Touch

The GX Touch 50 display allows you to have an instant overview of your system and adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim 5 inch waterproof design and its top-mountable setup bring a lot of flexibility when creating a crisp and clean dashboard.

VictronConnect

All Victron products on your boat can be monitored and controlled from the palm of your hand. Just connect the VictronConnect App via Bluetooth and you’ll have direct access to values like battery voltage and current. You can also turn devices on or off, as well as change their settings.

See what the VictronConnect app can do

VRM - Victron Remote Management

Overvåke og administrere

Overvåke og administrere Victron Energy-systemer fra hvor som helst og fanger opp potensielle problemer tidlig ved å konfigurere varsler og alarmer. VRM tilbyr deg perfekt kontroll uansett hvor du er.

VRM fungerer med en GX-enhet som Cerbo GX med internettilkobling, GlobalLink 520 eller GSM LTE 4G for mindre systemer.

Overvåking

Overvåk batteriets ladetilstand, strømforbruk, strømuttak fra solcelle, generator og strømnett i sanntid. Optimaliser energihøsten og bruken historikkgrafer og detaljerte analytiske rapporter. Oppdag potensielle problemer tidlig ved å konfigurere varsler og følge opp alarmer for å kunne forhindre endelig systemfeil.

Administrer

Kontroller inngangsstrømgrensen til landstrømmen på en enkel måte, slå på vekselretter, (auto)start/stopp av generatorer eller konfigurerer stille perioder for å unngå start av generatoren midt på natten. VRM kan brukes til å endre alle innstillinger, overvåke alarmer, utføre diagnostiske kontroller og løse utfordringer uansett hvor du er.

Se alle våre GX-enheter

Lynx Smart BMS

The Lynx Smart BMS er et dedikert system for batteribehandling for Victron Lithium Smart-batterier (for ikke Victron Lithium-batterier, se nedenfor). Det finnes flere BMS-er tilgjengelige for våre smarte litiumbatterier, og Lynx Smart vurderes som det mest funksjonerike og komplette alternativet. Det har følgende hovedfunksjoner:

• Innebygd 500 A-kontaktor som brukes som en sikkerhetsmekanisme og er egnet som en fjernstyrbar bryter for hovedsystemer.
• Batterimonitoren indikerer ladeprosent og flere data.
• Forhåndsalarm: gir en advarsel før systemet slår seg av og dette skyldes, for eksempel, lav celle.
• Bluetooth som brukes med vår VictronConnect-app, for konfigurering og overvåking.
• Lokal og ekstern overvåking med en Victron Gx-enhet, slik som Cerbo GX.

System for batteribehandling

Det dedikerte systemet for batteribehandling (BMS) beskytter Victron Lithium Smart-batterier mot dype utladninger, overlading og høye temperaturer. I tilfelle kritiske verdier overskrides, vil BMS virke umiddelbart: laster kobles fysisk fra ved dyp utladning og lading stoppes i tilfele det finnes en risiko for overlading. Høye temperaturer utløser en umiddelbar slutt på lading og utlading.

Batteriovervåking

Batteriovervåking er innebygd i Lynx Smart BMS; det kreves ingen separat batterimonitor. Batteribanken kan overvåkes med VictronConnect ved å bruke Bluetooth, når den er koblet til en GX-enhet, også med VRM, vår løsning for fjernovervåking.

Lynx-distribusjonssystem

Produktet er en del av det modulære Lynx-samleskinnesystemet. Det gir Lynx-distributøren som er en modulær samleskinne med likestrøm som inneholder 4 likestrømssikringer og overvåker deres status i VictronConnect og VRM og andre DC-koblinger for å kunne håndtere distribusjon, sikring, batteriovervåking og/eller behandling av litiumbatterier.

Litiumbatterier som ikke er fra Victron

Lynx-samleskinnesystemet kan også anvendes til likestrømsdistribusjonen og overvåkingen av litiumbatterier som ikke er fra Victron. Erstatt i dette tilfelle Lynx Smart-systemet for batteribehandling med Lynx Shunt VE.Can for overvåking av andre batterier. Se alle Lynx-moduler

Lynx Distributor

The Lynx Distributor is a modular DC busbar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. When connected to a Lynx Smart BMS or Lynx Shunt, the status of the fuses will be visible in VictronConnect and VRM (when the Lynx Smart BMS is connected to a GX-device).

Multiple Lynx Distributors can be used to connect all the DC-loads and charge sources on one side of the BMS, on the other side, a Lynx Power In (without fuses) or another Lynx Distributor (with fuses) can be used to connect the battery bank to the modular busbar.

Lynx Distribution system

This product is part of the modular Lynx busbar system that also provides the Lynx Smart BMS, a dedicated Battery Management System for Victron Lithium Smart Batteries (for non Victron Lithium batteries, use the Lynx Shunt).

Se alle Lynx-moduler
